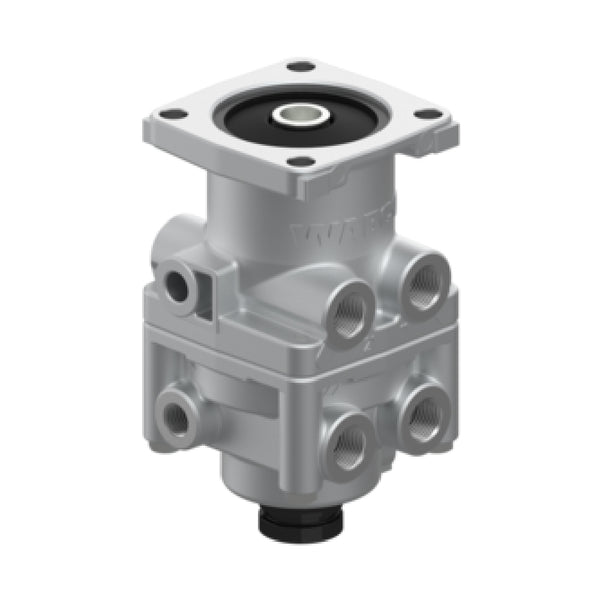

Foot Brake Valve
Specifications
| Specification | Value |
| Distance between holes | 61x61 mm |
| Exhaust | Snap-on contour |
| Max. operating pressure | 10.0 bar |
| Mounting | 4x Ø 9.0 mm |
| Pedal | No |
| Port thread 11 | M16 x 1.5 + M12 x 1.5 |
| Port thread 12 | M16 x 1.5 + M12 x 1.16 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 3 | Snap-on contour |
| Temperature range | -40°C to +80°C |
| Size (mm x mm x mm) | 152 x 88 x 83 |
| Weight (kg) | 1.122 |
| Weight (lb) | 2.4736 |
Cross References
| Replaces | Part Number |
| Alexander Dennis | 6.57E+06 |
| DAF | 1.51E+06 |
| MAN | ZG046180002 |
| Paccar | 1505303 |
| VDL | 30009143 |
Repair Kits
| Part Number | Description |
| PSV/27/082 | Kit: Valve |
| PSV/74/684 | Kit: Valve |
| PSV/74/685 | Kit: Valve |
