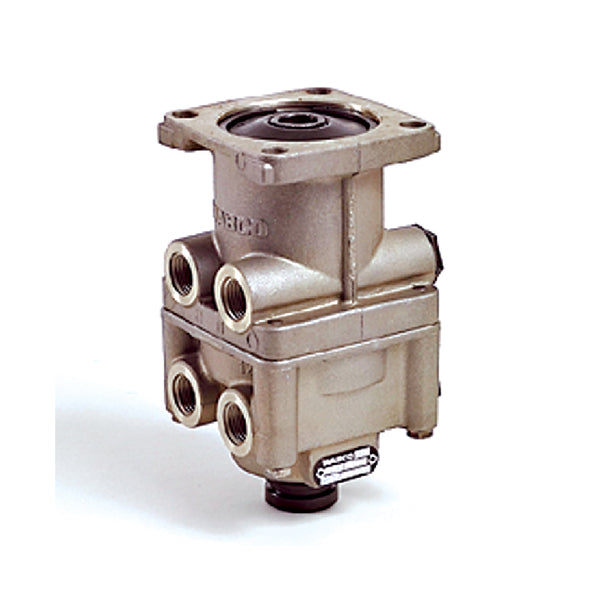

Foot Brake Valve
Specifications
| Specification | Value |
| Distance between holes | 61x61 mm |
| Exchange unit for | 461 315 027 0 |
| Exhaust | Snap-on contour |
| Max. operating pressure | 10.0 bar |
| Mounting | 4x Ø 9.0 mm |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Predominance | 0.40 bar |
| Temperature range | -40°C to +80°C |
| Size (mm x mm x mm) | 81 x 88 x 152 |
| Weight (kg) | 1.184 |
| Weight (lb) | 2.6103 |
Cross References
| Replaces | Part Number |
| Alexander Dennis | 6606871X |
| DAF | 1506085R |
