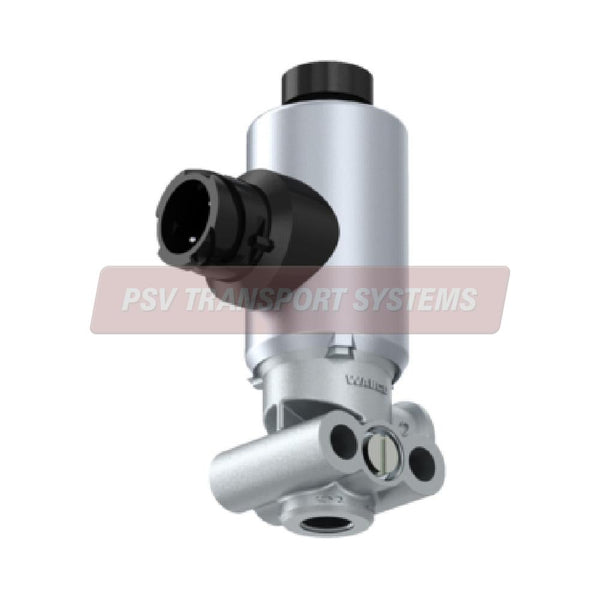

Solenoid Valve 3/2
Specifications
| Specification | Value |
| Electrical connection | Bayonet DIN 72 585 A1-2.1-Sn/K1 |
| Exhaust | 3.0 mm |
| Max. operating pressure | 12.5 bar |
| Multi nominal diameter | 2.2 mm |
| Nominal diameter | 2.2 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Protection class | IP 6K6, IP 6K9K |
| Rated current | 410 mA |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 24 V |
| Size (mm x mm x mm) | 112 x 68 x 38 |
| Weight (kg) | 0.535 |
| Weight (lb) | 1.1795 |
Cross References
| Replaces | Part Number |
| DAF | 1315507 |
| Leyland DAF | 1315507 |
| Paccar | CD4721726060 |
| Scania | 1934964 |
| VDL | 41197582 |
Repair Kits
| Part Number | Description |
| PSV/72/111 | Kit: Cap |
