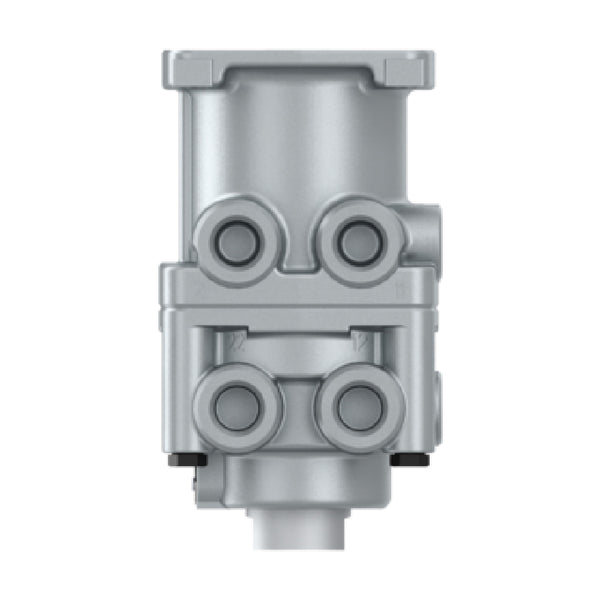

Foot Brake Valve
Specifications
| Specification | Value |
| Calculated Volume (dm³) | 1.0737 |
| Distance between holes | 61 x 61 mm |
| Exhaust | M22 x 1.5 |
| Max. operating pressure | 10.0 bar |
| Mounting | 4x Ø 9.0 mm |
| Pedal | No |
| Port thread 11 | M16 x 1.5 + M12 x 1.5 |
| Port thread 12 | M16 x 1.5 + M12 x 1.20 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 3 | M22 x 1.5 |
| Predominance | 0.30 bar |
| Temperature range | -40°C to +80°C |
| Size (mm x mm x mm) | 147 x 88 x 83 |
| UPC | 193133303015 |
| Weight (kg) | 1.154 |
| Weight (lb) | 2.5441 |
Cross References
| Replaces | Part Number |
| ALEXANDER DENNIS | 6518471 |
| DAF | 1520000 |
Repair Kits
| Part Number | Description |
| 4613150022 | Kit: Valve |
| 4613150052 | Kit: Valve |
| 4613159152 | Kit: Valve |
