Quick Release Valve Specifications Specification Value Distance between bolts 38 mm Exhaust Snap-on contour Max. operating pressure 12.0 bar Mounting 2x Ø 9.5 mm Port thread 1 M22 x 1.5...

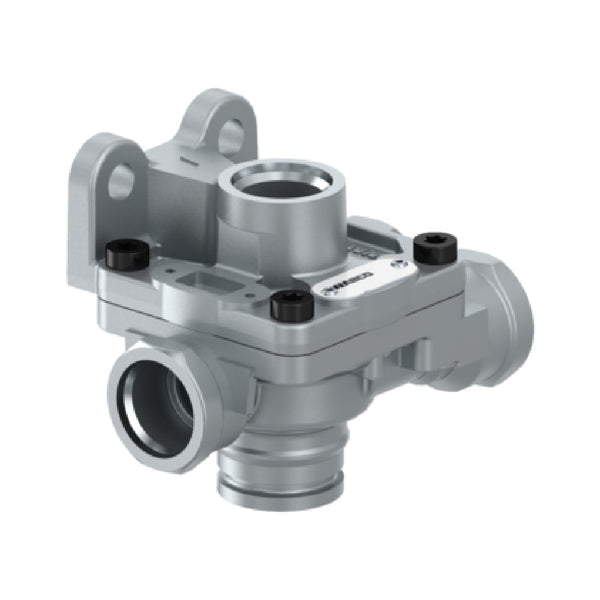

Quick Release Valve
Specifications
| Specification | Value |
| Distance between bolts | 38 mm |
| Exhaust | Snap-on contour |
| Max. operating pressure | 12.0 bar |
| Mounting | 2x Ø 9.5 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M22 x 1.5 |
| Port thread 23 | M22 x 1.5 |
| Size (mm x mm x mm) | 68 x 93 x 76 |
| Weight (kg) | 0.319 |
| Weight (lb) | 0.70327 |
Cross References
| Replaces | Part Number |
| Alexander Dennis | ABA0047292344 |
| DAF | 1.51E+06 |
| Evobus | A0044292344 |
| MAFI | 5661834 |
| Mercedes-Benz | 44292344 |
| Mercedes-Benz | 4.43E+07 |
| Mercedes-Benz | A0044292344 |
| Paccar | 1.51E+06 |
| Scania | 2131064 |
Repair Kits
| Part Number | Description |
| PSV/74/712 | Kit: Diaphragm |
