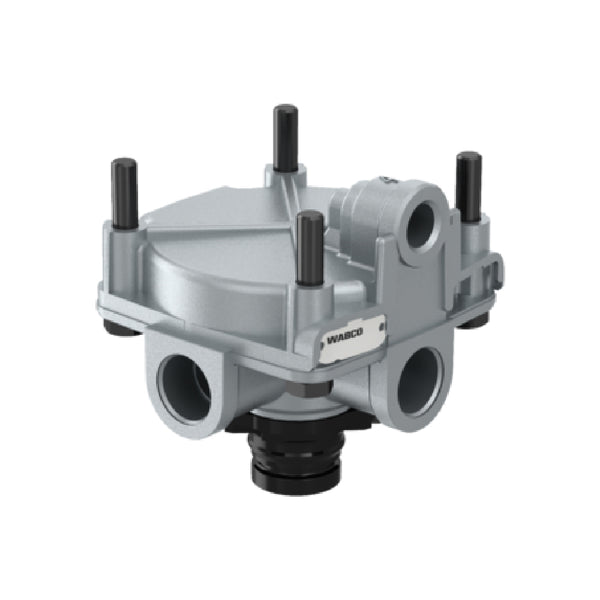

Relay Valve
Specifications
| Specification | Value |
| Calculated Volume (dm³) | 1.1433 |
| Exhaust | Snap on contour JED - 463 |
| Max. operating pressure | 10.0 bar |
| Mounting | 4x M8 |
| Opening pressure | 0.2 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Predominance | 0.10 bar |
| Regulating ratio | 01:01 |
| Version | Pressure reduction |
| Product category | Device |
| Temperature range | -40°C to +80°C |
| Size (mm x mm x mm) | 100 x 103 x 111 |
| Weight (kg) | 0.59 |
| Weight (lb) | 1.3007 |
Cross References
| Replaces | Part Number |
| DAF | 1444054R |
| RENAULT | 5.02E+09 |
| SCANIA | 1738439 |
| SCANIA | 579044 |
| SCANIA | 579044 |
| VOLVO | WA9730110007 |
