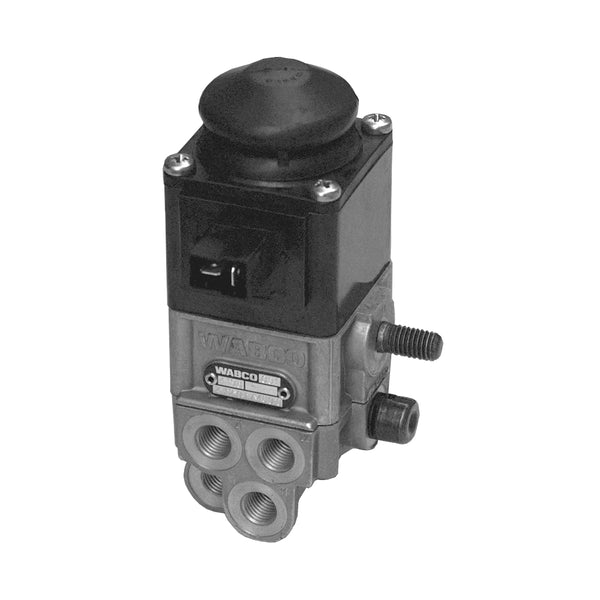

Solenoid Valve
Specifications
| Specification | Value |
| Electrical connection | 6.3 DIN 46 247 |
| Max. operating pressure | 8.0 bar |
| Nominal diameter | 3.0 mm |
| Port thread 11 | M12 x 1.5 |
| Port thread 12 | M12 x 1.5 |
| Port thread 21 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 23 | M12 x 1.5 |
| Port thread 24 | M12 x 1.5 |
| Port thread 3 | Ø 3 mm |
| Port thread 5 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Protection class | IP 66 |
| Rated current | 2100 mA |
| Temperature range | -40°C to +80°C |
| Type | Normally Open |
| Voltage | 24 V |
| Size (mm x mm x mm) | 158 x 83 x 76 |
| Weight (kg) | 1.016 |
| Weight (lb) | 2.2399 |
Cross References
| Replaces | Part Number |
| DAF | 1506132 |
| Evobus | 8633101000 |
| Evobus | A0007600378 |
| Evobus | A00076325520080 |
| Evobus | A000763255280 |
| Freightliner | TDAS4720174800 |
| Irisbus | 4751117 |
| Iveco | 4.75E+06 |
| Iveco | 42313618 |
| Iveco | 4.23E+07 |
| Iveco | 4751117 |
| Iveco | 42542323 |
| Kenworth | S472-017-480-0 |
| Kassbohrer | 86331010000 |
| Mack | 6300-4720174800 |
| MAN | 81749206017 |
| MAN | 81521706140 |
| Mercedes-Benz | 7600378 |
| Mercedes-Benz | A0007600378 |
| Mercedes-Benz | 7632552 |
| Mercedes-Benz | 76325520080 |
| Mercedes-Benz | 7.63E+08 |
| Mercedes-Benz | A00076325520080 |
| Meritor | S4720174800 |
| Neoplan | 240612400 |
| Neoplan | 11047741 |
| Neoplan | 24061230099 |
| Neoplan | 81749206017 |
| Otokar | 14C0156483AA |
| Peterbilt | S472-017-480-0 |
| Schmitz Cargobull | 8.63E+10 |
| Solaris | 2401252000 |
| Solaris | 2406124000 |
| VDL | 20190257 |
| VDL | 1.90E+05 |
| Volvo | TDAS4720174800 |
| Volvo | WAB4720174800 |
| Yutong | 3.51E+08 |
Repair Kits
| Part Number | Description |
| PSV/74/688 | Kit: Valve + Switch |
