PSV/78/206

Hand Brake Valve Specifications Specification Value Actuation Angle 73Â° Color Black/Black Distance Between Holes 80 mm Exhaust Hose Nozzle Ã˜ 8.5 mm Max Operating Pressure 10.0 bar Mounting 2x M6...

Description

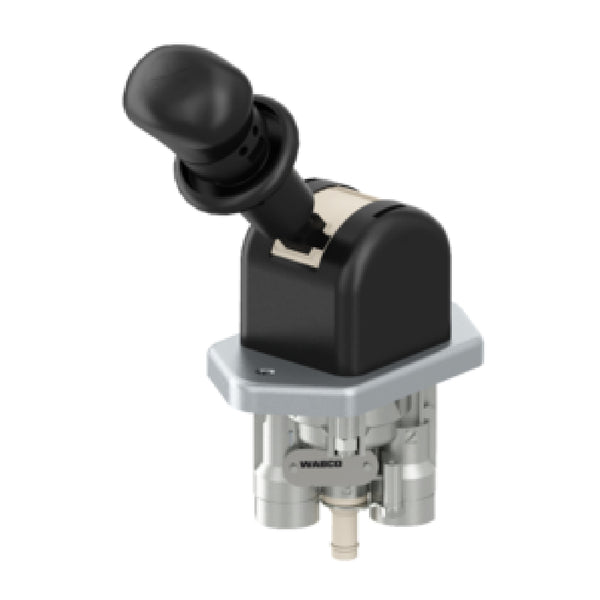

Hand Brake Valve

Specifications

Specification	Value
Actuation Angle	73Â°
Color	Black/Black
Distance Between Holes	80 mm
Exhaust	Hose Nozzle Ã˜ 8.5 mm
Max Operating Pressure	10.0 bar
Mounting	2x M6
Port Threads	1: M16 x 1.5 JED - 388
	2: M16 x 1.5 JED - 388
Temperature Range	-40Â°C to +80Â°C
Size (mm x mm x mm)	195 x 150 x 65
Weight (kg)	0.574
Weight (lb)	1.265

Cross References

Replaces	Part Number
Fuso (Mitsubishi)	ML270149

IS YOUR VEHICLE VOR?

Orders over £100 Next Day Carriage Free. Orders over £200 Next Day Before 12.00pm Carriage Free. Applies to non contract spend where scheduled order fulfilment processes are not in place.

TERMS APPLY - FIND OUT MORE

Common exchange parts are usually available from stock and protected with warranty. PSV Exchange products represent an environmentally conscious, cost efficient, reliable alternative to buying new.
