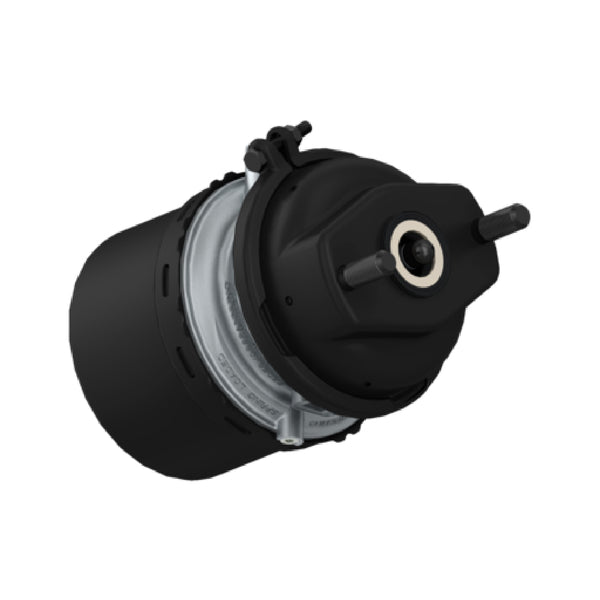

Tristop Cylinder 16/16
Specifications
| Specification | Value |
| Type | 16/16 |
| Type of Operation | Disc |
| Max. Operating Pressure | 10.2 / 8.5 bar |
| Release Pressure | 5.1 bar |
| Output Force (m) | 6200 N |
| Return-Spring Force | 150 N |
| Stroke | 57 / 57 mm |
| Push-Rod Length | 15 mm |
| Push-Rod Thread | Ball R8 |
| Total Length | 253.0 mm |
| Distance Between Bolts | 120.6 mm |
| Bolt Lengths | 38.5 mm |
| Bolt Threads | M16 x 1.5 |
| Port Thread 11 | M16 x 1.5 JED - 152 |
| Port Threads | M16 x 1.5 |
| Opposite | 925 484 041 0 |
| Temperature Range | -40°C to +80°C |
| Size (L x W x H) | 980 x 185 x 185 mm |
| Weight | 7.078 kg (15.6 lb) |
Cross References
| Replaces | Part Number |
| Alexander Dennis | 661135 |
Accessories and Complements
| Part Number | Description |
| PSV/93/044 | Hexagon Nut DIN934-M16x1,5 |
