PSV/27/343

Hand Brake Valve Specifications Specification Value Actuation angle 73° Color Black/Black Distance between holes 80 mm Exhaust Hose Nozzle Ø 8.5 mm Max. operating pressure 10.0 bar Mounting 2x M8...

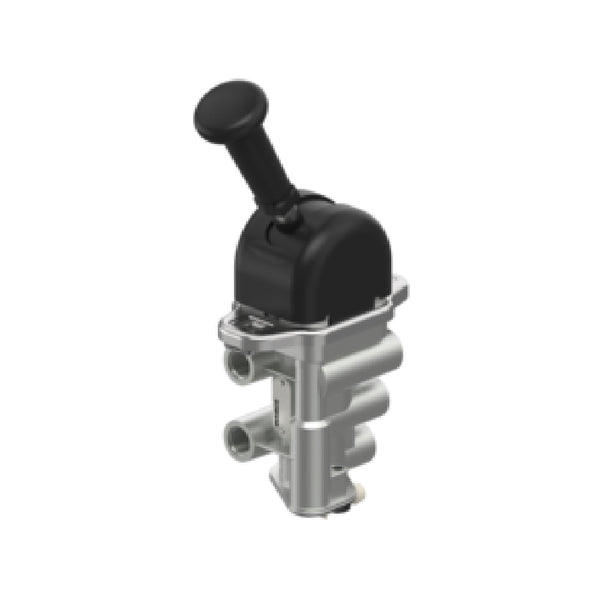

Hand Brake Valve

Specifications
Specification Value
Actuation angle 73°
Color Black/Black
Distance between holes 80 mm
Exhaust Hose Nozzle Ø 8.5 mm
Max. operating pressure 10.0 bar
Mounting 2x M8
Port thread 11 M14 x 1.5
Port thread 12 M14 x 1.5
Port thread 21 M14 x 1.5
Port thread 23 M14 x 1.5
Temperature range -40°C to +80°C
Size (mm x mm x mm) 211 x 108 x 58
Weight (kg) 1.153
Weight (lb) 2.5419
Cross References
Replaces Part Number
Irizar 8015525
Mercedes-Benz 3644307181
Mercedes-Benz A3644307181
