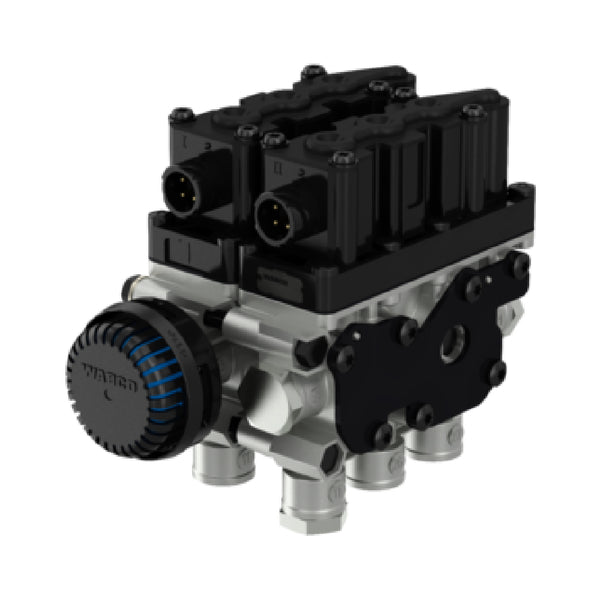

Solenoid Valve
Specifications
| Specification | Value |
| Calculated Volume (dm³) | 4.8777 |
| Electrical connection | Bayonet DIN 72585-A2-4.1-Sn/K2, Bayonet DIN 72585-A1-4.2-Sn/K2 |
| Max. operating pressure | 20.0 bar |
| Mounting | 2 x M8 |
| Multi nominal diameter | 9.8 / 7.0 mm |
| Port threads | M22 x 1.5 JED - 388 (multiple ports: 11, 21, 22, 23, 26, 27) |
| Port thread 3 | Silencer 432 407 060 0 |
| Protection class | IP 6K9K |
| Rated current | 320 mA |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| Size (mm x mm x mm) | 207 x 172 x 137 |
| UPC | 1.93133E+11 |
| Weight (kg) | 4.976 |
| Weight (lb) | 10.97 |
Cross References
| Replaces | Part Number |
| ALEXANDER DENNIS | 617569 |
| DAF | 1150000 |
| EVOBUS | A0013270225 |
| FUSO (MITSUBISHI) | MK471498 |
| IRISBUS | 41211015 |
| IRIZAR | 8020000 |
| IVECO | 41200000 |
| SCANIA | 1930000 |
| VDL | 41152509 |
Repair Kits
| Part Number | Description |
| 4728800002 | Kit: Screw |
| 4728809212 | Kit: Valve Solenoid |
| 4728809232 | Kit: Valve Solenoid |
| 4728809242 | Kit: Valve Solenoid |
| 4728809252 | Kit: Valve Solenoid |
| 4728809342 | Kit: Seal |
| 4728809402 | Kit: Seal |
| 4729009282 | Kit: Valve Solenoid |
