Hand Brake Valve Specifications Specification Value Actuation angle 73° Color Black/Black Distance between holes 80 mm Exhaust Hose Nozzle Ø 8.5 mm Max. operating pressure 10.0 bar Mounting 2x M6...

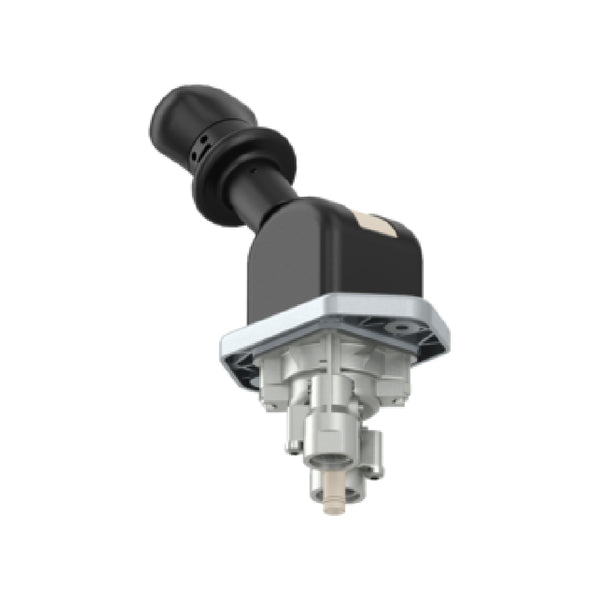

Hand Brake Valve
Specifications
| Specification | Value |
| Actuation angle | 73° |
| Color | Black/Black |
| Distance between holes | 80 mm |
| Exhaust | Hose Nozzle Ø 8.5 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x M6 |
| Port thread 1 | M16 x 1.5 JED - 388 |
| Port thread 21 | M16 x 1.5 JED - 388 |
| Temperature range | -40°C to +80°C |
| Size (mm x mm x mm) | 195 x 150 x 65 |
| Weight (kg) | 0.574 |
| Weight (lb) | 1.265 |
Cross References
| Replaces | Part Number |
| Fuso (Mistubishi) | ML270149 |
