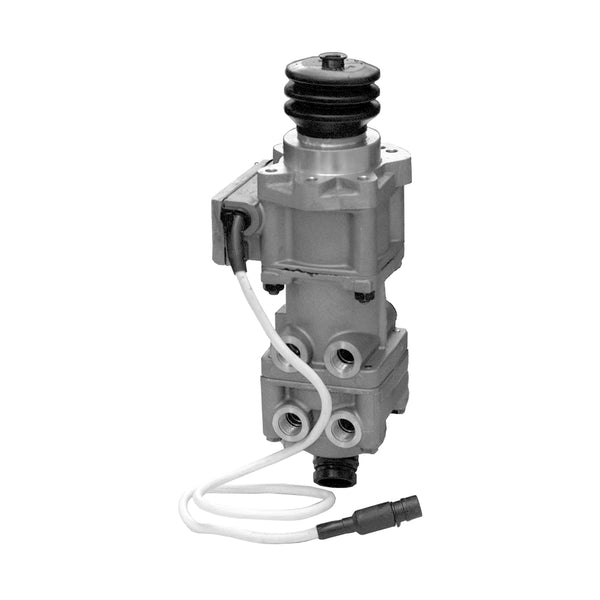

Foot Brake Valve
Specifications
| Specification | Value |
| Comments | Exhaust angled at 40° |
| Exhaust | M22 x 1.5 |
| Max. Operating Pressure | 10.0 bar |
| Mounting | 7x M8 |
| Pedal | No |
| Port Thread 11 | M16 x 1.5 + M12 x 1.5 |
| Port Thread 12 | M16 x 1.5 + M12 x 1.22 |
| Port Thread 21 | M16 x 1.5 |
| Port Thread 22 | M16 x 1.5 |
| Port Thread 3 | M22 x 1.5 |
| Temperature Range | -40°C to +80°C |
| Size (mm x mm x mm) | 291 x 141 x 116 |
| Weight (kg) | 2.747 |
| Weight (lb) | 6.0561 |
| Total Length | 283.0 mm |
| Type | 27/30 |
| Type of Operation | Cam |
| Version | Without boot |
| Yoke | No |
| Size (mm x mm x mm) | 220 x 220 x 480 |
| Weight (kg) | 11.66 |
| Weight (lb) | 25.7059 |
Cross References
| Replaces | Part Number |
| Alexander Dennis | DP002107 |
| Irisbus | 500363666 |
| Iveco | 500363666 |
| MAN | 81521306128 |
| MAN | 81521309128 |
| MAN | 8.15E+10 |
| Neoplan | 81521306128 |
| Yutong | 3.51E+08 |
| Yutong | 3514-00030 |
Repair Kits
| Part Number | Description |
| PSV/74/685 | Kit: Valve |
| PSV/27/082 | Kit: Valve |
| PSV/74/684 | Kit: Valve |
