PSV/72/133

Air Reservoir 1 L Steel Specifications Specification Value Body Material Steel Color Black/Black Capacity 1 L Diameter 117.0 mm Length 170 mm Port Threads M22 x 1.5 Ports 2 Max....

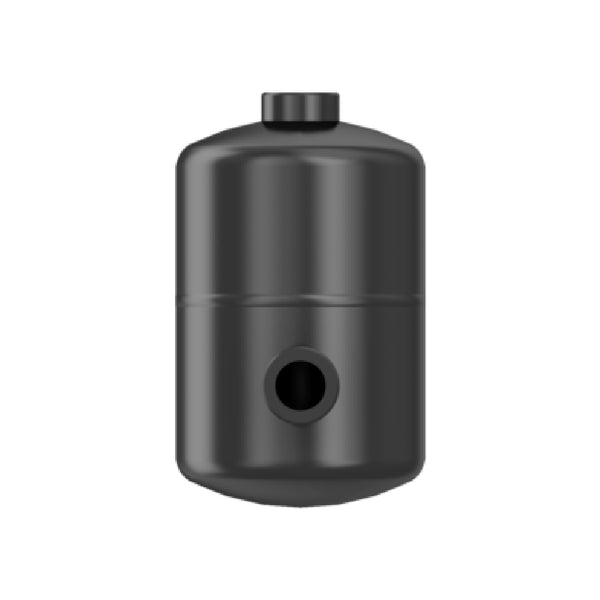

Air Reservoir 1 L Steel

Specifications
Specification Value
Body Material Steel
Color Black/Black
Capacity 1 L
Diameter 117.0 mm
Length 170 mm
Port Threads M22 x 1.5
Ports 2
Max. Operating Pressure 15.5 bar
Temperature Range -50°C to +200°C
Size (mm x mm x mm) 170 x 118 x 106
Weight (kg) 1.13
Weight (lb) 2.49122
Cross References
Replaces Part Number
Alexander Dennis 660090
Irizar 8.03E+06
Kassbohrer 82855480000
Paccar AMPC258
VDL 20252274
VDL 2.02E+07
