PSV/73/122

Tie Rod End | Angled Ball Joint | Angled Ball Joint, steering push rod Specifications Properties Data Thread Size 1 M30 x 1,5R Thread Size 2 M24 x 1,5 Length...

Tie Rod End | Angled Ball Joint | Angled Ball Joint, steering push rod

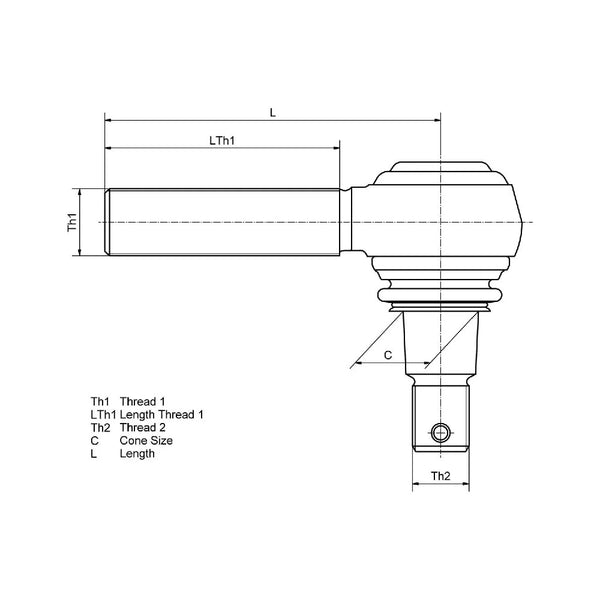

Specifications
Properties Data
Thread Size 1 M30 x 1,5R
Thread Size 2 M24 x 1,5
Length (mm) 125
Cone Size (mm) 30
Net Weight (g) 1565
Thread Length 1 (mm) 80
Fitting Position Front Axle
Applications
Vehicle brand Model, engine, gearbox, axle, cab
DAF 45/55/65/75/85/95 65 1993-1998 1993 - 1998, 75 1992-1998 1992 - 1998, 95 1987-1997 1987 - 1997
DAF CF 65 CF 1998-2001 1998 - 2001, 75 CF 1998-2001 1998 - 2001, 85 CF 1998-2001 1998 - 2001, CF 65 2001-2006 2001 - 2006, CF 75 2001-2006 2001 - 2006, CF 75IV 2006-2013 2006 - 2013, CF 85 2001-2006 2001 - 2006, CF 85IV 2006-2013 2006 - 2013, CF E6 2013-2017 2013 - 2017, CF F7 2017- 2017 - 0
DAF F/N 500-3600 F 1000, F 1100, F 1300, F 1600, F 1700, F 1800, F 1900, F 2100, F 2300, F 2500, F 2700, F 2800, F 2900, F 3200, F 3300, F 3600, F 800, N 2800
DAF LF LF E6 2013- 2013 - 0
DAF XF XF 105 2005- 2005 - 0, XF 95 2002-2006 2002 - 2006, XF E6 2012- 2012 - 0, XF F7 2017- 2017 - 0, XF G2 2021- 2021 - 0
Iveco Eurocargo Eurocargo (tbd) 1991 - 0
Iveco EuroStar EuroStar 1993-2002 1993 - 2002
Iveco EuroTech EuroTech 1992-2002 1992 - 2002
Iveco M M 1977-1984 1977 - 1984
Iveco P/PA P 1979-1993 1979 - 1993, PA 1979-1993 1979 - 1993
Iveco Stralis Stralis (tbd) 2002 - 2019
Iveco S-Way S-Way 2019- 2019 - 0
Iveco Trakker EuroTrakker 1993-2004 1993 - 2004, Trakker (tbd) 2004 - 2021
Iveco T-Way T-Way 2021- 2021 - 0
Iveco X-Way X-Way 2019- 2019 - 0
Mack Mid-Liner CS, MS
MAN Chassis FOC, HOC, Lion's
MAN CLA CLA 2007 - 2018
MAN F 7/8/9 F 7, F 8, F 9
MAN G/M/F 90 F 90, G 90, M 90
MAN Lion's Lion's City, Lion's Classic, Lion's Coach, Lion's Regio, Lion's Star
MAN L/M/F/E 2000 E 2000, F 2000, L 2000, M 2000
MAN N-Busse ND, NG, NL, NM, NÜ
MAN S-Busse SD, SG, SL, SR, SÜ
MAN Sonstige Busse 270/290/320/370, 292/332/362, 322/352/402/422/462, EL, RH
MAN TG-Serie TGA 2000 - 0, TGL 2004 - 0, TGM 2004 - 0, TGS 2006 - 0, TGX 2006 - 0
MAN ÜL-Busse ÜL
Mercedes-Benz Actros 1 950, 952, 953, 954, tbd
Mercedes-Benz Actros 2 930, 932, 933, 934, tbd
Mercedes-Benz Actros 3 930, 932, 933, 934, tbd
Mercedes-Benz Actros 4 963
Mercedes-Benz Antos 963
Mercedes-Benz Arocs 964
Mercedes-Benz Atego 1 375, 950, 952, 953, 954, 970, 972, 974, 975, 976, tbd
Mercedes-Benz Atego 2 375, 958, 970, 972, 974, 975, 976
Mercedes-Benz Atego 3 967
Mercedes-Benz Axor 374, 375, 940, 942, 943, 944, 950, 952, 953, 954, tbd
Mercedes-Benz Chassis 384
Mercedes-Benz OM 300 - (L-Serie) 343, 346, 349, 385, 617, 619
Mercedes-Benz MK-Series (OM 400) 385, 621, 645, 655, 656
Mercedes-Benz NG-Series (OM 400) 385, 387, 389, 393, 395, 616, 617, 619, 620
Mercedes-Benz Bus O 300 355
Mercedes-Benz SK-Series (OM 400) 621, 622, 623, 624, 625, 645, 646, 647, 648, 649, 652, 655, 656, 658, 659
Neoplan Neoplan Centroliner, Cityliner, Jetliner, Skyliner, Starliner, Tourliner, Trendliner, Trolley
Renault G / Manager G, Manager
Renault Kerax Kerax DXi 11, Kerax
Renault Magnum AE, AE Magnum, Magnum E-Tech
Renault Maxter Maxter
Renault Midliner CE, M, ME, S, SE
Renault Midlum Midlum, Midlum II
Renault C / CBH / CLM / CLR C, CBH, CLM, CLR
Renault Premium Premium, Premium II DXi 7, Premium II PR, Premium II TR, Premium PR, Premium TR
Renault Puncher Puncher
Renault R / Major Major, R
Scania 3-Serie Bus F 113 1987-1999 1987 - 1999, F 93 1987-1999 1987 - 1999, K 113 1987-1999 1987 - 1999, K 93 1987-1999 1987 - 1999, L 113 1987-1999 1987 - 1999, N 113 1987-1999 1987 - 1999
Scania 3-Serie G 93 1987-1996 1987 - 1996, P 113 1987-1996 1987 - 1996, P 93 1987-1996 1987 - 1996, R 143 1987-1996 1987 - 1996, T 113 1987-1996 1987 - 1996, T 143 1987-1996 1987 - 1996, T 93 1987-1996 1987 - 1996
Scania 4-Serie Bus CL 94 1994-2010 1994 - 2010, CN 94 1994-2010 1994 - 2010, F 94 1994-2010 1994 - 2010, K 114 1994-2010 1994 - 2010, K 94 1994-2010 1994 - 2010, tbd
Scania 4-Serie P 114 1994-2008 1994 - 2008, P 124 1994-2008 1994 - 2008, P 94 1994-2008 1994 - 2008, R 124 1994-2008 1994 - 2008, R 144 1994-2008 1994 - 2008, R 164 1994-2008 1994 - 2008
Scania F-, K-, N-Serie F 2004- 2004 - 0, tbd
Scania L-, P-, G-, R-, S-Serie L 2016- 2016 - 0, tbd
Scania P-, G-, R-, T-Serie P 2003-2018 2003 - 2018, tbd
Sisu Sisu / Renault Sisu / Renault
Volvo FE FE 2006-2013 2006 - 2013, FE (3) 2013- 2013 - 0
Volvo FL FL 2006-2013 2006 - 2013, FL (3) 2013- 2013 - 0, FL6 2000-2006 2000 - 2006
DAF Bus tbd
Bova tbd tbd
Alexander Dennis tbd tbd
Cross References
Replaces Ref. no.
BMC 9P914836
Bova 229872
Bova 264074
Bova 510053
Bova 607981
DAF 69752
DAF 607981
DAF 696226
DAF 698450
DAF 1142022
DAF 1149907
DAF 1152350
DAF 1257890
DAF 1603789
DAF 1618048
DAF 607981
DAF 696226
DAF 69752
DAF 698450
DAF 9510212
DAF ACHF060
Dana F5045S
Alexander Dennis 655357
Alexander Dennis 6625413
Deutz 0296 6252
Deutz 0296 9808
Deutz 0431 1552
Deutz 0480 2443
Deutz 0483 3829
Deutz 0713 8967
Deutz 0812 2752
Deutz 32 2127 0R91
Deutz 4248 3386
Deutz 4248 8269
Deutz 4248 9573
Deutz 4248 9594
Deutz 4249 1638
Deutz 4253 7936
Faun 99708408375
Foden Trucks Y04505003
Hyundai 56811-7M000
Hyundai 56811-7M100
Ikarus 4030R11377
Iveco 0296 6252
Iveco 0296 9808
Iveco 0480 2443
Iveco 0483 3822
Iveco 0483 3829
Iveco 0713 8967
Iveco 0812 2752
Iveco 296 6252
Iveco 296 9808
Iveco 4248 3386
Iveco 4248 3388
Iveco 4248 8269
Iveco 4248 9573
Iveco 4248 9594
Iveco 4249 1638
Iveco 4253 7936
Iveco 4256 5955
Iveco 480 2443
Iveco 483 3822
Iveco 483 3829
Iveco 50 0185 8773
Iveco 713 8967
Iveco 8 0121 1835
Iveco 812 2752
Iveco 9319 4576
JCB 45/8M1380
Liebherr 571866608
Liebherr 725010008
MAN 81.95301.0016
MAN 81.95301.0075
MAN 81.95301.0084
MAN 81.95301.0088
MAN 81.95301.0094
MAN 81.95301.0103
MAN 81.95301.6012
MAN 81.95301.6030
MAN 81.95301.6043
MAN 81.95301.6048
MAN 81.95301.6049
MAN 81.95301.6053
MAN 81.95301.6061
MAN 81.95301.6090
MAN 81.95301.6100
MAN 81.95301.6108
MAN 81.95301.6112
MAN 81.95301.6126
MAN 81.95301.6143
MAN 81.95301.6149
MAN 81.95301.6154
MAN 81.95301.6156
MAN 81.95301.6168
MAN 81.95301.6178
MAN 81.95301.6194
MAN 81.95301.6206
MAN 81.95301.6224
MAN 81.95301.6234
MAN 81.95301.6242
MAN 81.95301.6252
MAN 81.95301.6274
MAN 81.95301.6278
MAN 81.95301.6284
MAN 81.95301.6308
MAN 81.95301.6310
MAN 81.95301.6312
MAN 81.95301.6347
MAN 81.95301.6350
MAN 81.95301.6352
MAN 81.95301.6374
MAN 81953016014
MAN 82.95301.6012
MAN 88.95301.6014
MAN 90.80410.2156
MAN 90.80410.2272
MAN 90.80410.2696
MAN 90.80410.2710
MAN N1.01102.0300
MAN N2.95301.6001
Mercedes-Benz 000 330 5248
Mercedes-Benz 000 338 7310
Mercedes-Benz 000 340 6169
Mercedes-Benz 000 340 6251
Mercedes-Benz 000 340 6254
Mercedes-Benz 000 340 6260
Mercedes-Benz 000 340 6261
Mercedes-Benz 000 340 6326
Mercedes-Benz 000 460 0348
Mercedes-Benz 000 460 0948
Mercedes-Benz 000 460 1048
Mercedes-Benz 000 460 2848
Mercedes-Benz 000 460 2948
Mercedes-Benz 000 460 5235
Mercedes-Benz 000 460 8948
Mercedes-Benz 000 463 0218
Mercedes-Benz 000 463 0418
Mercedes-Benz 000 463 0518
Mercedes-Benz 000 463 0618
Mercedes-Benz 001 460 0248
Mercedes-Benz 001 460 0848
Mercedes-Benz 001 460 1248
Mercedes-Benz 001 460 2248
Mercedes-Benz 001 460 7748
Mercedes-Benz 001 460 8048
Mercedes-Benz 002 460 0148
Mercedes-Benz 350 330 7235
Mercedes-Benz 350 330 7435
Mercedes-Benz 685 153 1000
Mercedes-Benz 822 623 6059
Mercedes-Benz A000 330 5248
Mercedes-Benz A000 338 7310
Mercedes-Benz A000 340 6169
Mercedes-Benz A000 340 6251
Mercedes-Benz A000 340 6254
Mercedes-Benz A000 340 6260
Mercedes-Benz A000 340 6261
Mercedes-Benz A000 340 6326
Mercedes-Benz A000 460 0348
Mercedes-Benz A000 460 0948
Mercedes-Benz A000 460 1048
Mercedes-Benz A000 460 2848
Mercedes-Benz A000 460 2948
Mercedes-Benz A000 460 5235
Mercedes-Benz A000 460 8948
Mercedes-Benz A000 463 0218
Mercedes-Benz A000 463 0418
Mercedes-Benz A000 463 0518
Mercedes-Benz A000 463 0618
Mercedes-Benz A001 460 0248
Mercedes-Benz A001 460 0848
Mercedes-Benz A001 460 1248
Mercedes-Benz A001 460 2248
Mercedes-Benz A001 460 7748
Mercedes-Benz A001 460 8048
Mercedes-Benz A002 460 0148
Mercedes-Benz A350 330 7235
Mercedes-Benz A350 330 7435
Mercedes-Benz A685 153 1000
Mercedes-Benz A822 623 6059
Neoplan 0110.196.59
Neoplan 0140.137.69
Neoplan 1203.250.00
Neoplan 1223.532.02
Otokar 16H0007006AA
Renault 00 03 406 169
Renault 00 03 406 236
Renault 00 03 406 251
Renault 00 03 406 254
Renault 00 03 406 260
Renault 00 03 406 261
Renault 50 00 240 688
Renault 50 00 242 475
Renault 50 00 242 479
Renault 50 00 242 485
Renault 50 00 253 852
Renault 50 00 275 496
Renault 50 00 288 360
Renault 50 00 590 236
Renault 50 00 804 824
Renault 50 00 819 349
Renault 50 00 858 773
Renault 50 01 836 298
Renault 50 01 858 760
Renault 50 01 858 773
Renault 50 10 832 582
Renault 74 20 894 052
Renault 77 01 011 412
Scania 1370720
Scania 1420822
Scania 1435746
Scania 1435756
Scania 1738381
Scania 1767328
Scania 1899667
Scania 1914427
Scania 2051166
Scania 283784
Scania 2862743
Scania 2977059
Scania 345118
Scania 345188
Scania 395010
Setra 6.851.475.000
Setra 6.851.480.000
Setra 6.851.484.000
Setra 8.226.236.059
Sisu 1605300183
Sisu 1605300184
Solaris 801211835
Solaris 820352140
Tata 218633100116
Trident 310310
Van Hool 634301250
Volvo 20350395
Volvo 20742127
Volvo 20745043
Volvo 20821160
Volvo 20862494
Volvo 20894052
Volvo 85101766
VW 2V5 422 817 A
