PSV/26/961

ABS Sensor Specifications Specification Value Color Yellow Diameter 11.0 mm Electrical Connection GHW-Connector (Code B) GHW-Connectors With hook Length 2595 mm Mounting Flange Protection Class IP 68 IEC 60529, IP...

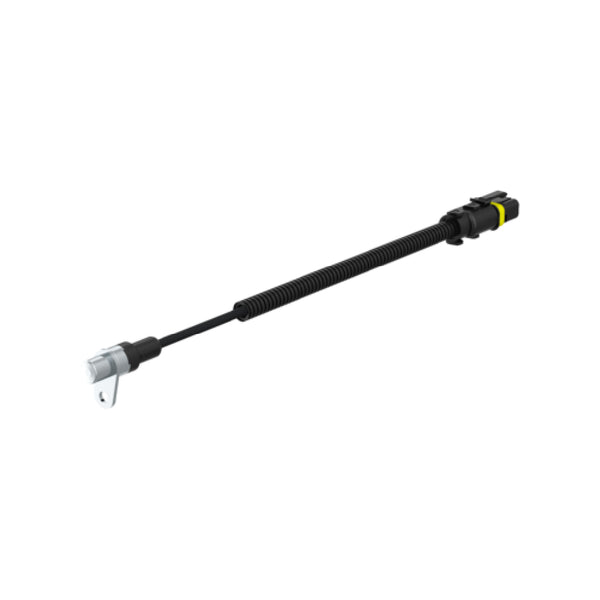

ABS Sensor

Specifications
Specification Value
Color Yellow
Diameter 11.0 mm
Electrical Connection GHW-Connector (Code B)
GHW-Connectors With hook
Length 2595 mm
Mounting Flange
Protection Class IP 68 IEC 60529, IP 6K9K DIN 40050 BL.9
Side of Mounting Rear axle right
Temperature Range -40°C to +80°C
Version Axial
Size (mm x mm x mm) 211 x 197 x 50
Weight (kg) 0.102
Weight (lb) 0.22487
Cross References
Replaces Ref. No.
MAN 81271206189
Neoplan 81271206189
Paccar 1529008
