Foot Brake Valve Specifications Specification Value Distance between holes 80x180 mm Electrical connection ITT Cannon 4-pin Exhaust Snap-on contour Max. operating pressure 10.0 bar Mounting 3x Ø 9.0 mm Pedal...

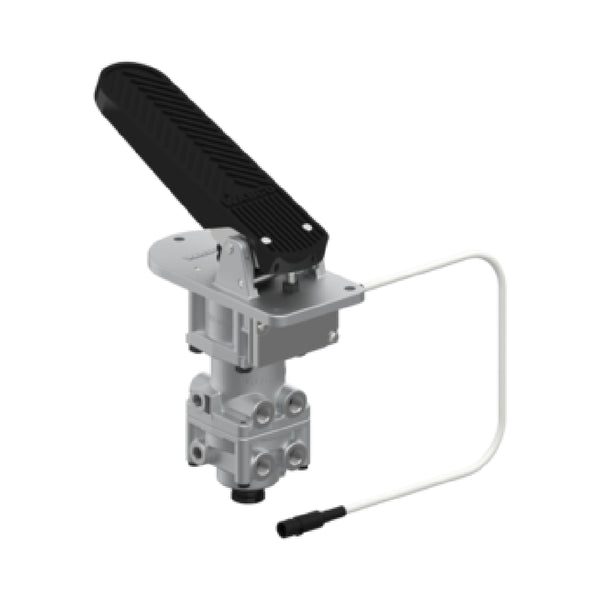

Foot Brake Valve
Specifications
| Specification | Value |
| Distance between holes | 80x180 mm |
| Electrical connection | ITT Cannon 4-pin |
| Exhaust | Snap-on contour |
| Max. operating pressure | 10.0 bar |
| Mounting | 3x Ø 9.0 mm |
| Pedal angle | 20° |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Temperature range | -40°C to +80°C |
| Size (mm x mm x mm) | 134 x 395 x 205 |
| Weight (kg) | 3.53 |
| Weight (lb) | 7.7823 |
Cross References
| Replaces | Part Number |
| Alexander Dennis | 6.57E+05 |
| Evobus | HEO627420NO37 |
| JAC | W20705.03200.01W |
| King Long | 35K3R14020 |
| King Long | 235434660 |
| King Long | 35K3R-14020 |
| Paccar | 1528853 |
| Yutong | 3.51E+08 |
Repair Kits
| Part Number | Description |
| PSV/27/082 | Kit: Valve |
| PSV/74/684 | Kit: Valve |
| PSV/74/685 | Kit: Valve |
