Foot Brake Valve Specifications Specification Value Actuation 4613247902 Basic valve 4613154950 Calculated Volume (dm³) 9.4965 Distance between holes 80x180 mm Exhaust M22 x 1.5 Max. operating pressure 10.0 bar Mounting...

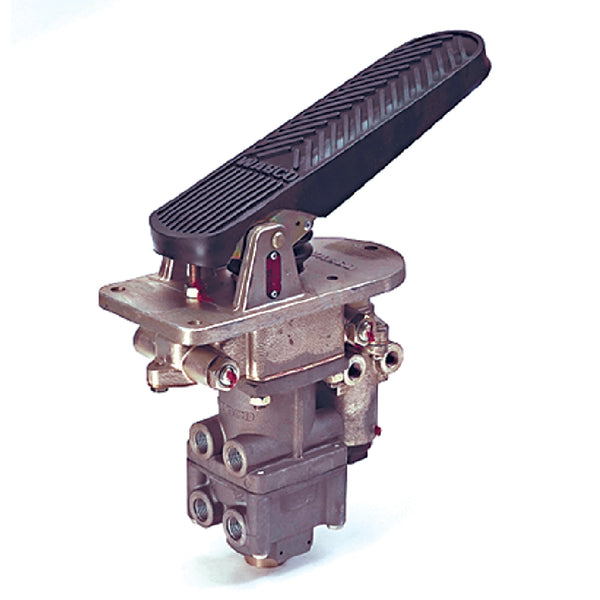

Foot Brake Valve
Specifications
| Specification | Value |
| Actuation | 4613247902 |
| Basic valve | 4613154950 |
| Calculated Volume (dm³) | 9.4965 |
| Distance between holes | 80x180 mm |
| Exhaust | M22 x 1.5 |
| Max. operating pressure | 10.0 bar |
| Mounting | 3x Ø 9.5 mm |
| Pedal angle | 20° |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Port thread 13 | M12 x 1.5 |
| Port thread 21 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 23 | M12 x 1.5 |
| Predominance | 0.30 bar |
| Temperature range | -40°C to +80°C |
| Type | Retarder Valve: 461 324 520 0 |
| Size (mm x mm x mm) | 110 x 382 x 226 |
| UPC | 193133304517 |
| Weight (kg) | 3.804 |
| Weight (lb) | 8.3864 |
Cross References
| Replaces | Part Number |
| ALEXANDER DENNIS | 651847 |
| ALEXANDER DENNIS | 13590 |
| DAF | 1505314 |
| GOLDHOFER | 11024100 |
| IVECO | 42544117 |
| MAN | 81521306072 |
| MAN | 81521306075 |
| MAN | 81521306083 |
| NEOPLAN | 110241000 |
| NEOPLAN | 11017327 |
| NEOPLAN | 81521306072 |
| PACCAR | 1505314 |
| VAN HOOL | 637209260 |
Repair Kits
| Part Number | Description |
| 4613150022 | Kit: Valve |
| 4613189202 | Kit: Pedal Cover |
| 4613189242 | Kit: Mounting Piece, Pedal |
| 4613240002 | Kit: Spring |
