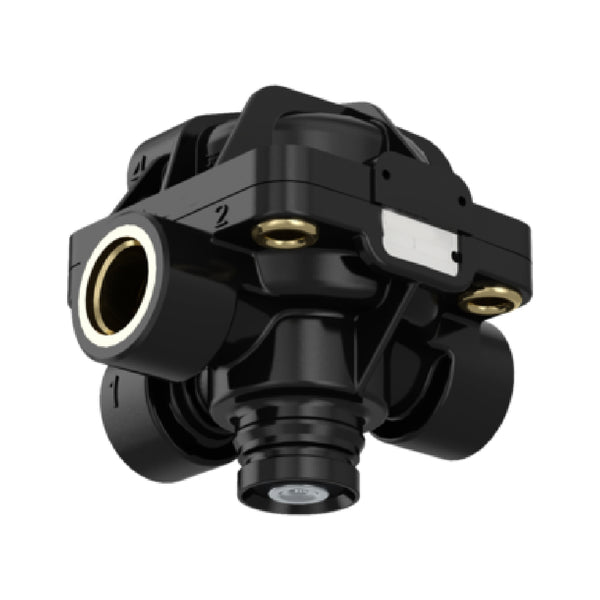

Relay Valve
Specifications
| Specification | Value |
| Comments | Voss threads |
| Exhaust | Snap on contour JED - 463 |
| Max. Operating Pressure | 10.0 bar |
| Opening Pressure | 0.9 bar |
| Port Thread 1 | M22 x 1.5 JED-388 |
| Port Thread 2 | 2x M22 x 1.5 JED - 388 |
| Port Thread 3 | JED-463 |
| Port Thread 4 | M16 x 1.5 JED - 388 |
| Predominance | 0.20 bar |
| Regulating Ratio | 01:01 |
| Temperature Range | -40°C to +80°C |
| Version | Pressure reduction |
| Size (mm x mm x mm) | 104 x 111 x 99 |
| Weight (kg) | 0.491 |
| Weight (lb) | 1.0825 |
Cross References
| Replaces | Part Number |
| Alexander Dennis | DP002130 |
| DAF | 1505150 |
| Evobus | A0044290644 |
| Lohr | 9730060010 |
| MAN | 81521166067 |
| MAN | 8.15E+10 |
| MAN | 81521166069 |
| MAN | 8.15E+10 |
| MAN | 81521166068X |
| Mercedes-Benz | 4.43E+07 |
| Mercedes-Benz | 44291144 |
| Mercedes-Benz | A0044290644 |
| Neoplan | 81521166068 |
| Paccar | 1505150 |
| Renault | 5021170458 |
| Scania | 1935645 |
