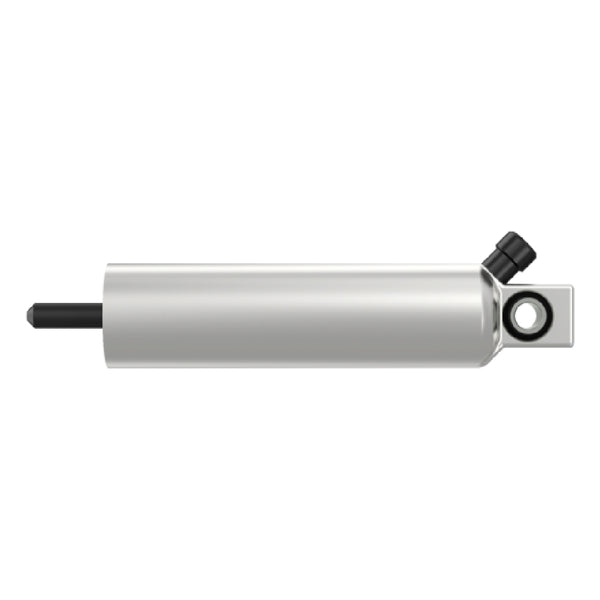

Piston Operating Cylinder
Specifications
| Specification | Value |
| Diameter | 33.0 mm |
| Inlet port | M12 x 1.5 |
| Length | 171 mm |
| Total length | 171.4 mm |
| Max. operating pressure | 8.5 bar |
| Mounting | Ø 8.2 mm |
| Piston diameter | 28.0 mm |
| Piston force | 320 N |
| Return-spring force | 250 N |
| Stroke | 48.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Push-rod thread | M8 |
| Temperature range | -25°C to +140°C |
| Type | Single-acting Cylinder |
| Size (mm x mm x mm) | 172 x 37 x 32 |
| Weight (kg) | 0.225 |
| Weight (lb) | 0.49604 |
Cross References
| Replaces | Part Number |
| Alexander Dennis | 6541331 |
| DAF | 1.51E+06 |
| Evobus | 8285311000 |
| Iveco | 3260555R1 |
| MAN | 81157016003 |
| MAN | 8.15E+10 |
| MAN | 8.82E+10 |
| Mercedes-Benz | 4.30E+06 |
| Mercedes-Benz | 4301926 |
| Mercedes-Benz | 4.30E+06 |
| Mercedes-Benz | 4303026 |
| Mercedes-Benz | 4.30E+06 |
| Mercedes-Benz | A0004304926 |
| Mercedes-Benz | 4,304,926 |
| Neoplan | 110270600 |
| Neoplan | 11017417 |
| Neoplan | 88157016003 |
| Paccar | 1505023 |
| Steyr | 5.65031E+11 |
| Terex | 42068512 |
