Pressure Sensor Specifications Specification Value Electrical Connection Bayonet DIN 72585 A1-3.1-Sn/K2 Hysteresis 0.2% FS Linearity 0.3% FS Max. Operating Pressure 16.0 bar Measuring Range 0 to 12.00 bar Port Thread...

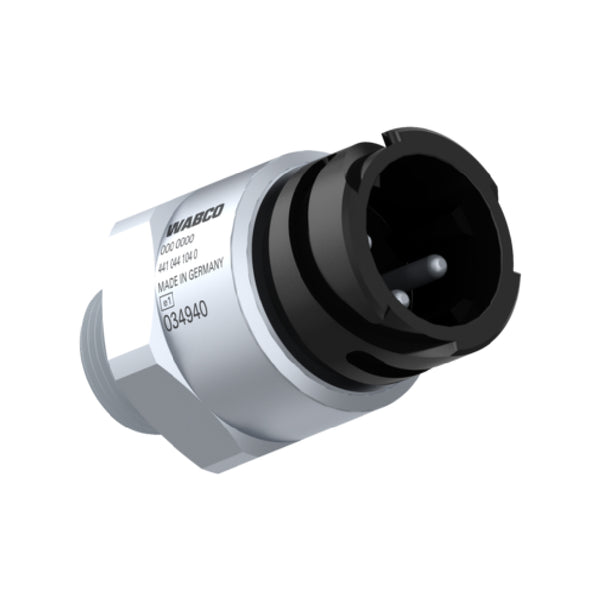

Pressure Sensor
Specifications
| Specification | Value |
| Electrical Connection | Bayonet DIN 72585 A1-3.1-Sn/K2 |
| Hysteresis | 0.2% FS |
| Linearity | 0.3% FS |
| Max. Operating Pressure | 16.0 bar |
| Measuring Range | 0 to 12.00 bar |
| Port Thread 0 | M16 x 1.5 |
| Port Threads | M16 x 1.5 |
| Predominance | 0.5 V |
| Protection Class | IP6K7 / IP6K9K |
| Rated Current | 15 A |
| Sealing | 8977702504 |
| Sensitivity | 0.33 V/bar |
| Temperature Range | -40°C to +80°C |
| Type | Piezo-Resistive |
| Version | With sealing |
| Voltage | 24 V |
| Size (mm x mm x mm) | 54 x 29 x 30 |
| Weight (kg) | 0.033 |
| Weight (lb) | 0.0727525 |
Cross References
| Replaces | Part Number |
| DAF | 1737516 |
| Irizar | 8.02E+06 |
| Leyland DAF | 1737516 |
| MAN | 36274210028 |
